Title: Geometry, Not Calorimetry, Drives the Radio/Infrared/Gamma-Ray Correlation
Authors: T. A. Porter, I. V. Moskalenko, and G. Johannesson
First Author’s Institution: Hansen Experimental Physics Laboratory, Stanford University, Stanford, CA 94305
Status: Submitted to ApJ (available on Arxiv)
Galaxies emit light not only in the visible band, but also across other wavelengths via different physical mechanisms. Finding correlations between luminosity from emissions at different wavelengths is a powerful tool for astrophysicists to explore the underlying mechanisms of galaxy formation. One of the most famous examples is the infrared (IR)–radio continuum correlation, which holds across several orders of magnitude in luminosity.
The typical explanation for this correlation is that both IR and radio synchrotron emission share the same energetic origin: star formation. Young stars emit ultraviolet radiation, which is absorbed by interstellar dust and re-radiated in the IR. When these stars end their lives in core-collapse supernovae, the resulting shock waves accelerate cosmic-ray (CR) electrons, which then interact with the magnetic field to produce synchrotron emission.
For this correlation to hold, CR electrons must radiate away all their energy before escaping the galaxy. Otherwise, the amount of radio emission would depend on how quickly CRs escape and would no longer correlate with the IR emission. This assumption is called the “electron calorimeter” model, assuming electrons lose all their energy due to radiation without escaping the galaxy. However, observations show that the IR–radio correlation persists even in low-density galaxies where CRs can easily escape, suggesting that the calorimeter model may not be the full story. To reconcile this, previous studies proposed “conspiracy-like” scenarios in which CR injection, transport, magnetic field amplification, and gas density are all coupled in a finely self-regulating way to maintain the correlation across diverse galactic environments — a somewhat awkward explanation that requires multiple unrelated physical processes to conveniently work together.
With the increased sensitivity of the Fermi Large Area Telescope (Fermi-LAT), high-energy gamma-ray (or γ-ray) detections add new information to this picture. γ-ray emission in a galaxy is produced by two different sources: CR protons interacting with the interstellar medium (ISM) gas, and by CR electrons inverse-Compton scattering off from nearby starlights or photons from the cosmic microwave background (CMB). Since both processes involve CRs, the total γ-ray emission should also reflect the amount of star formation and therefore correlate with IR and radio emission.
Because all three wavelengths trace different pieces of the same CR population, studying them together reveals how the galaxy’s total CR energy budget is distributed across its multi-wavelength emission.
The IR–radio correlation has been established not only at the scale of entire galaxies, but also locally, down to patches of just ~100 pc across. Think of it like the relationship between a city’s electricity consumption and its population: we have long known they track each other city-wide, but it turns out the same relationship holds block by block. The IR–radio correlation works the same way: zoom into any ~100 pc region within a galaxy, and the correlation is still there. Unfortunately, the resolution of γ-ray observations is still stuck at around the kiloparsec scale. It is therefore unclear whether the local IR–radio correlation reflects a genuine local physical coupling, one that would extend to γ-rays if we had sufficient resolution, or whether it is simply a spatial average of the emission, smoothed out by insufficient resolution. The answer determines whether radio and γ-ray emission can be used as reliable tracers of star formation, or whether they are just smeared out by CR propagation over kiloparsec scales.
In this study, the authors numerically model Galactic CR transport, building a suite of physically motivated three-dimensional models of the Milky Way (MW). They consider two variants for each of the four key inputs: the CR source distribution, the interstellar gas, the amount of star light within the galaxy (the interstellar radiation field, ISRF), and the galactic magnetic field (GMF). Crucially, every model is normalized to reproduce the locally observed CR data to within 5%, so that any differences in the predicted emission come purely from the large-scale geometry of each input, rather than from variations in the total CR budget.
After evolving CR transport for these realistic models, the authors then compute synthetic observations at radio, IR, and γ-ray bands from various viewing inclinations to investigate how the underlying galactic model and the viewing angle affect the correlations between these emissions.
Surprisingly, inclination plays the most important role – more so than the CR source distribution, the radiation field, or the magnetic field. Figure 1 shows the correlation plots between the radio vs. γ-ray emission (left two columns) and between IR vs. γ-ray emission (right two columns) when viewing the galaxy face-on (i.e., viewing the galaxy from directly above the disk). Different colors represent γ-ray emission components from different physical mechanisms, with orange showing the total γ-ray emission. For both sets of correlation plots, starting from the upper-left panel, each panel modifies one physical input and recomputes the emission. Although there is some variation, one can see that the γ-ray emission correlates with both the radio and the IR emission over several orders of magnitude, regardless of the underlying input model.

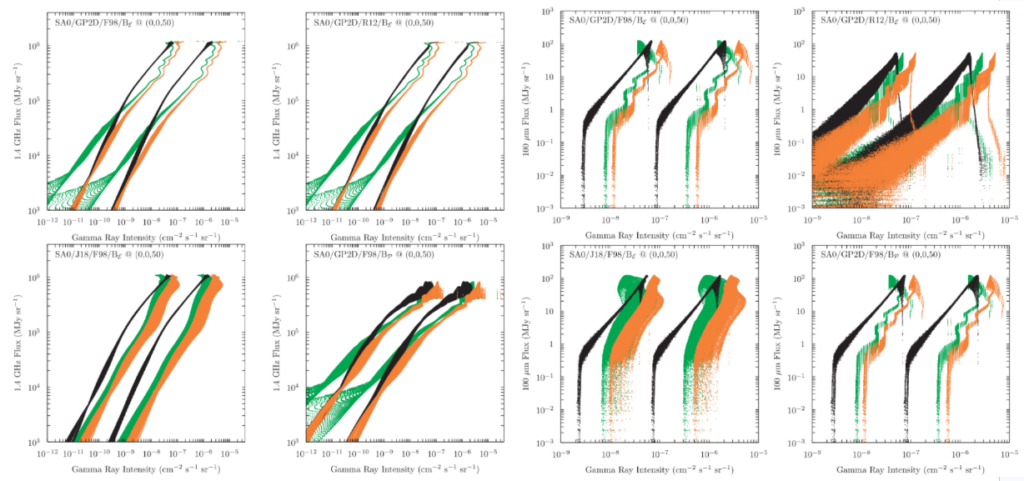

Figure 1. Radio (left two columns) and IR (right two columns) vs. γ-ray correlation plots for a galaxy viewed face-on from 50 kpc. Each panel modifies one input — the CR source distribution, gas, radiation field within the galaxy, or magnetic field — relative to a baseline model. Colors indicate γ-ray production mechanisms (green: proton–gas; black: inverse-Compton; orange: total). Across all variations, both the radio–γ-ray and IR–γ-ray correlations remain quasi-linear over several orders of magnitude, showing that the correlations are robust to the choice of underlying galactic model. [Figure 1 & 2 from paper]
In contrast, Figure 2 shows the correlation plot between radio vs. γ-ray emission (upper panels) and between IR vs. γ-ray emission (lower panels) when viewing the galaxy edge-on (viewing the disk from the side). The radio–γ-ray correlation is preserved, while the IR–γ-ray correlation is no longer observed. This is because, at this inclination, geometric projection separates the emission components. IR-emitting dust and γ-ray emission from CR–ISM interactions are confined to the disc, while synchrotron radio emission and γ-ray emission from inverse-Compton scattering extend to larger distances above and below the galaxy disc. As a result, in an edge-on view, a sightline passing through the disc sees strong IR emission, while a sightline that misses the disc sees zero IR but still some γ-ray emission, breaking down the IR–γ-ray correlation. On the other hand, because radio emission is more extended than IR emission, sightlines that miss the disc can still see both radio and γ-ray emission together, preserving the radio–γ-ray correlation.
Figure 2. Correlation plots for two galaxy models viewed edge-on from 50 kpc — simple axisymmetric (left) and complex with spiral arms (right). Top: radio vs. γ-ray; bottom: IR vs. γ-ray. Colors indicate γ-ray production mechanisms (green: proton–gas; black: inverse-Compton; orange: total). The IR–γ-ray correlation breaks down, while the radio–γ-ray correlation is broadened but partially preserved. [Figure 6 from paper]
However, there is one situation where the edge-on correlation comes back: when the observer is far enough away that the image becomes too blurry to resolve the galaxy’s internal structure. Figure 3 shows the same galaxy model viewed from 500 kpc, roughly the distance to M31, our nearest large neighbor. At this distance, a single pixel in the image covers about 1 kpc across, large enough for everything along the line of sight. The messy, broken-up pattern seen in the closer 50 kpc edge-on view (lower-right panel of Fig. 2) disappears, and a tight, nearly linear correlation comes back. This explains why nearly all distant, unresolved galaxies show tight radio–IR–γ-ray correlations: the tightness is simply what you get when you blur everything together, not evidence that CRs are actually losing all their energy locally inside those galaxies.

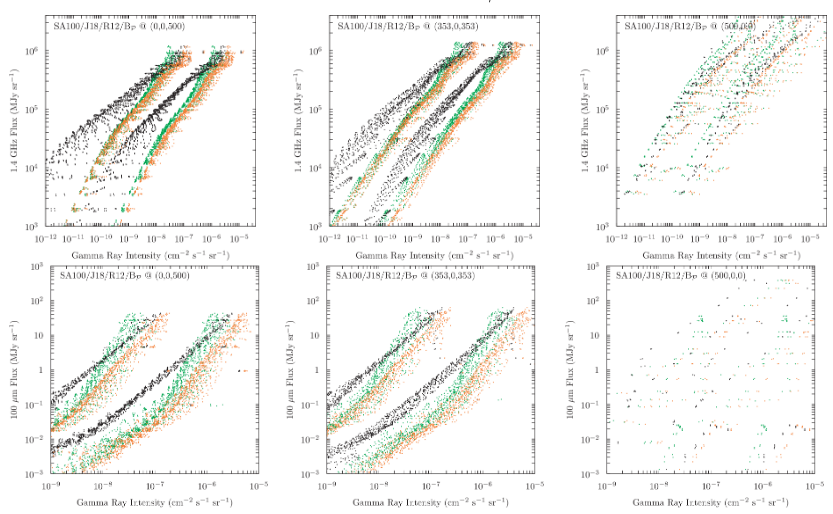

Figure 3. Correlation plots from a complex galaxy model viewed from 500 kpc, at three different inclinations (face-on, 45°, edge-on). Top row: radio vs. γ-ray; bottom row: IR vs. γ-ray. Colors indicate different γ-ray production mechanisms (green: proton–gas; black: inverse-Compton; orange: total). At this distance, the blurring effect of large pixels restores a tight correlation even in the edge-on view. [Figure 8 from paper]
Now we have a consistent picture of the radio–IR–γ-ray correlation: the authors conclude that this correlation is not a direct signature of CR calorimetry, but a geometric projection effect. In face-on systems, a single sightline integrates emission from both the disc and off-disc regions, naturally producing a linear correlation, even when CRs do not lose all their energy locally to radiation (i.e., local calorimetry is absent). In edge-on systems, the correlation breaks down because geometric stratification separates the different emission components. The practical implication is significant: for unresolved galaxies, the tightness of the global correlation alone cannot be used as evidence for CR calorimetry, and the physically meaningful information about CR transport and escape efficiency is encoded in the scatter around the mean trend, not in the correlation itself.
Astrobite edited by Kelsie Taylor
Featured image credit: Porter et al. (2026)
